Product Characteristics:

GU-H series self sealing pressure pipeline filter

The GU-H series filter is installed on the pressure pipeline of the hydraulic system to remove or prevent pollutants from invading or generating in the hydraulic oil, prevent valve core jamming, blockage of throttle hole gaps and damping holes, and rapid wear of hydraulic components; This series of filters is equipped with a bypass valve and a bypass check valve for dual protection. In addition, there is a pressure difference polluter. When the filter element is blocked to a pressure difference of 3.5 bar at the inlet and outlet, a signal is sent, and the filter element should be cleaned or replaced.

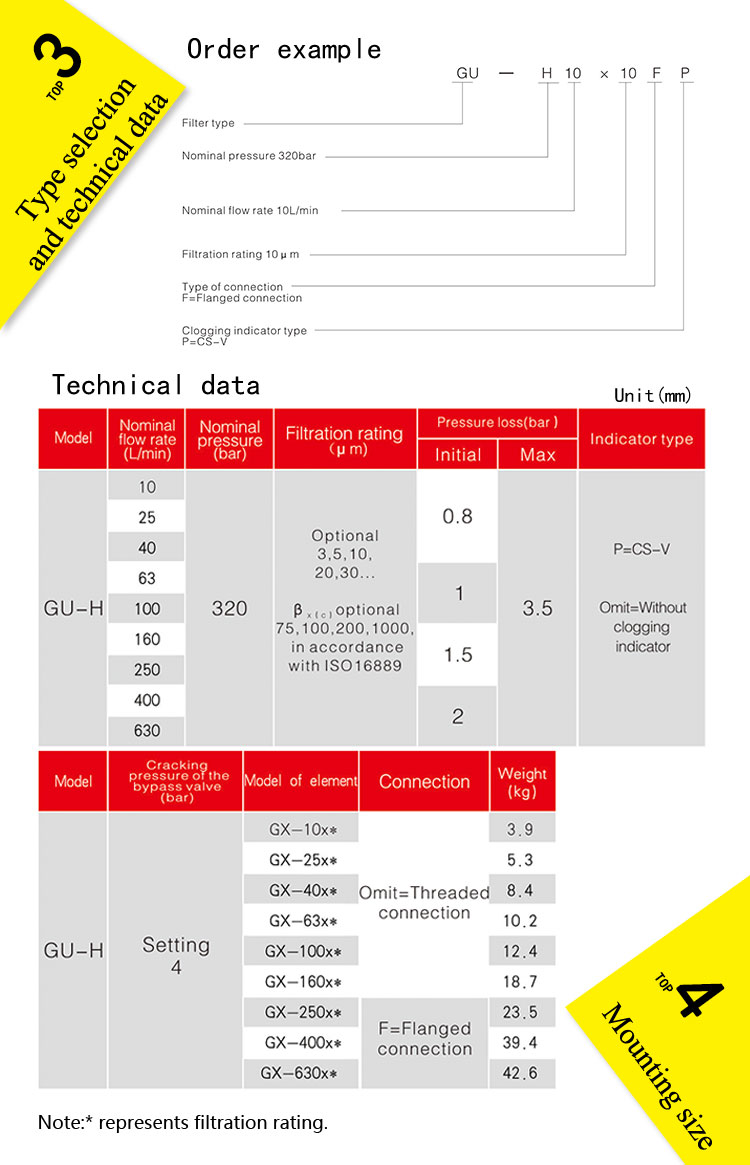

Product Type Selection:



Product Technical Data:



Product Mounting Size:
