EF-25-120 series hydraulic air filter

Description: The EF-25-120 series hydraulic air filter consists of two parts: air filtration and refueling filtration.

Share with:

  • Characteristics
  • Type Selection
  • Technical Data
  • Mounting Size

Product Characteristics:

 EF-25-120 series hydraulic air filter

The EF-25-120 series hydraulic air filter consists of two parts: air filtration and refueling filtration. It can not only prevent particle impurities from mixing during refueling, but also ensure the cleanliness of the breathing and exchange air in the fuel tank. Simplified the fuel tank structure, making it convenient for users to use.

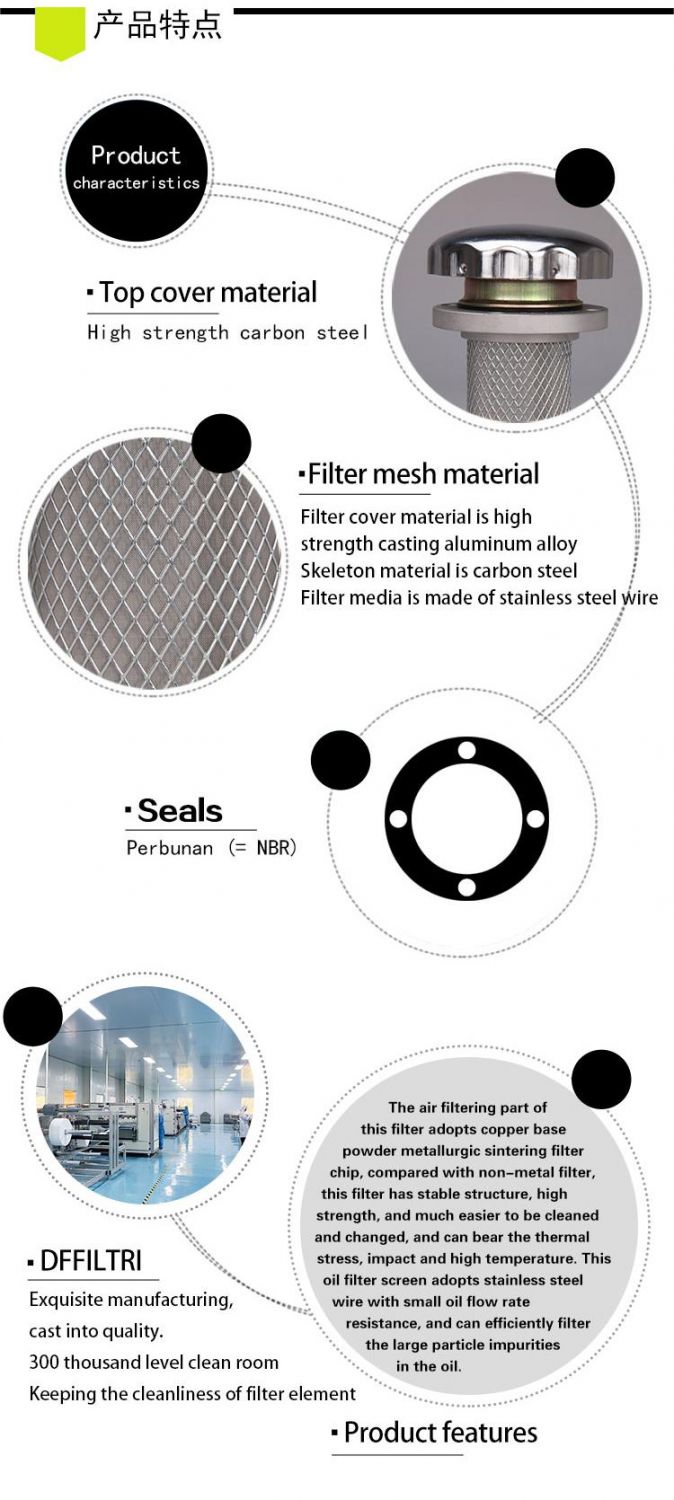

The air filtration part of the EF-25-120 series hydraulic air filter adopts copper based powder metallurgy sintered filter plates. Compared with non-metallic filters, it has the characteristics of stable filtration accuracy, high strength, strong plasticity, easy disassembly and cleaning, and can withstand thermal stress, impact, and normal operation at high temperatures. The oil filter adopts a stainless steel mesh, which has a small oil flow resistance and can effectively filter out large particle impurities in the oil.


Product Type Selection:



Product Technical Data:

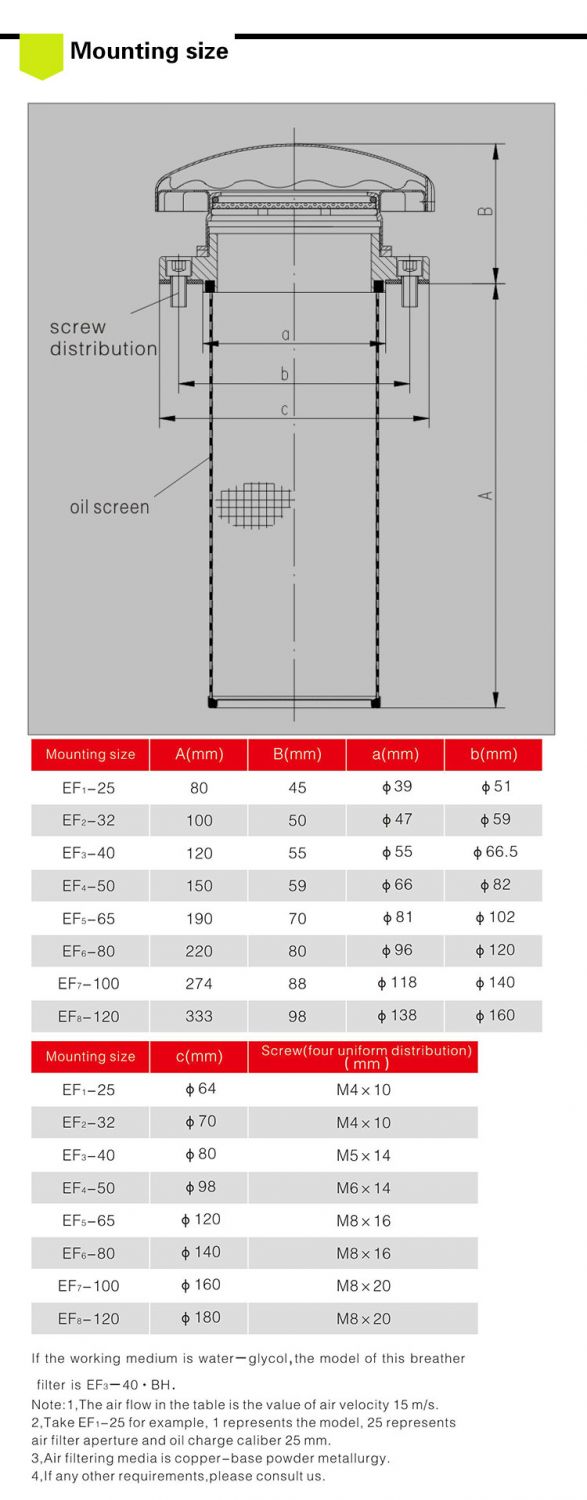

Product Mounting Size:
